| Категорија |
Спецификација |
Детали |
| Основни |
Model Version |
P2 1.0 |
| CPU |
1.3 GHz Dual-Core, ARM Cortex-A53 |
| Меморија |
Flash / ROM |
128 MB (1 Gbit) NAND |
| DDR / RAM |
256 MB (2 Gbit) DDR3 |
| Cellular |
Cellular Standards |
5G Rel. 15, DL 4G Cat.12 / UL Cat.13 |
| Max Download Speed |
2.6 Gbps (NSA), 2 Gbps (SA) |
| Max Upload Speed |
650 Mbps (NSA), 1 Gbps (SA) |
| Advanced Features |
5G + 4G Dual Connectivity, DL 4×4 / UL 2×2 MIMO |
| Cellular Antennas |
4× Internal, 2× SMA (custom antennas) |
| SIM Options |
1× Nano SIM, eSIM (optional for ISP) |
| Cellular Bands |
5G: n1/3/5/7/8/20/28/38/40/41/66/77/78
LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66
WCDMA: B1/2/5/8 |
| Wireless (Wi-Fi) |
Wi-Fi Standard |
Dual-Band Wi-Fi 6 (802.11ax) |
| 5 GHz Speed |
2402 Mbps |
| 2.4 GHz Speed |
574 Mbps |
| Wi-Fi Streams |
2×2 MIMO (5 GHz & 2.4 GHz) |
| Wi-Fi Antennas |
Internal |
| Beamforming |
Yes |
| FEM / PA-LNA |
5 GHz: 3× Internal, 2.4 GHz: 2× Internal |
| Wi-Fi Range |
Up to 170 m (open space) |
| Интерфејси |

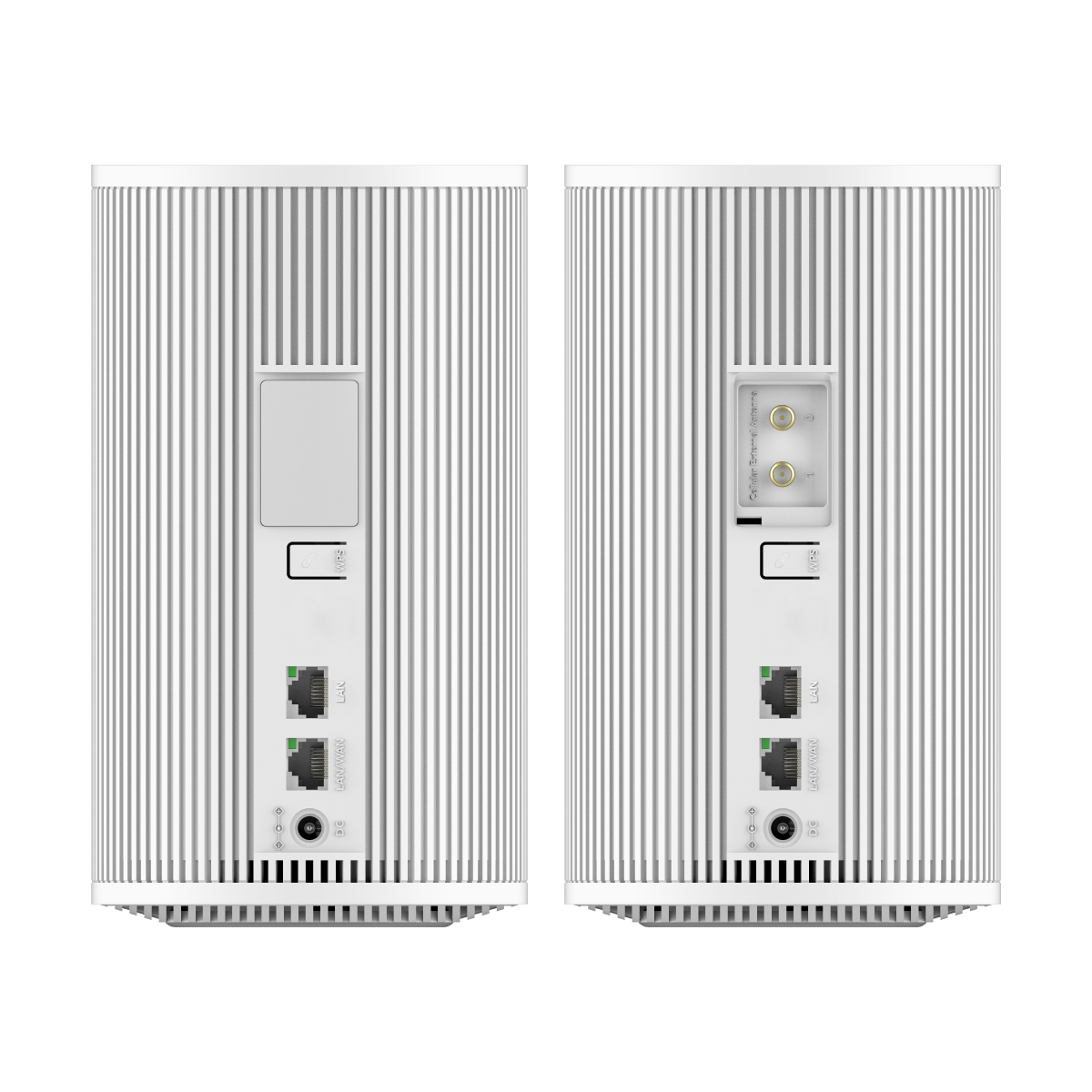

Ethernet Ports |
2 × Gigabit RJ45 |
| Ethernet Mode |
1× WAN/LAN configurable, others LAN |
| FXS Port |
1 × RJ11 (VoNR / VoLTE, optional) |
| Physical Buttons |
WPS, Reset |
| LED Indicators |
Power, Internet, Wi-Fi, Cellular |
| Напојување |
Power Method |
DC |
| Power Input |
12V ⎓ 1.5A |
| Max Power Consumption |
13.2 W |
| Power Adapter |
Input 100–240V~, Output 12V ⎓ 1.5A |
| Околина |
Operating Temperature |
0 ~ 40 ℃ |
| Storage Temperature |
-40 ~ 70 ℃ |
| Humidity |
10 ~ 90% operating, 5 ~ 90% storage |
| Сертификации |
EMC |
ESD: Contact 4kV, Air 8kV |
| Certificates |
FCC, CE |
| Механички |
Dimensions |
Φ116 × 202 mm |
| Weight |
650.8 g |
| Installation |
Desktop |
| Пакување |

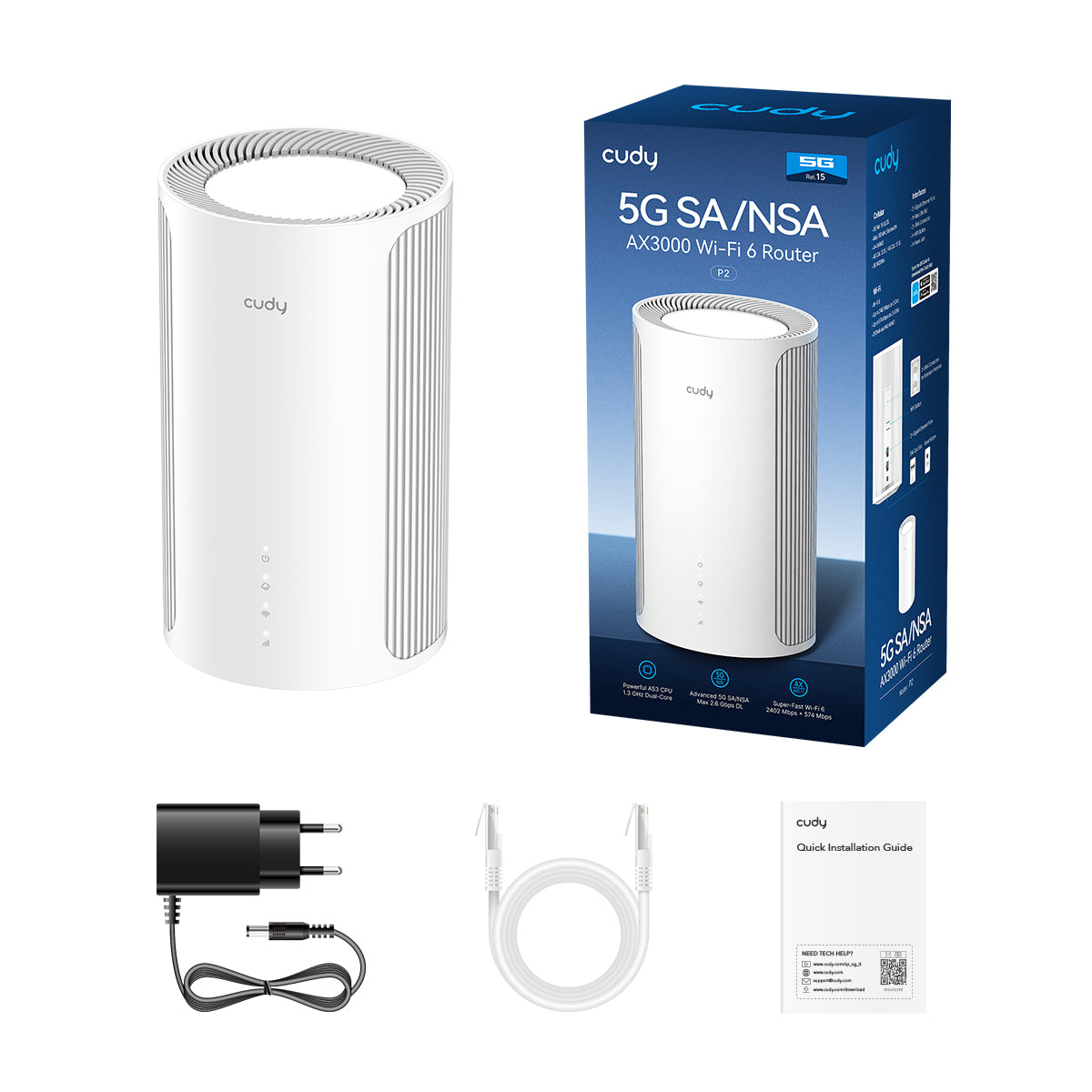

Package Contents |
P2, Power Adapter, Ethernet Cable, Installation Guide |
